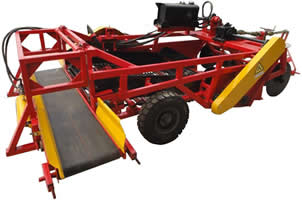

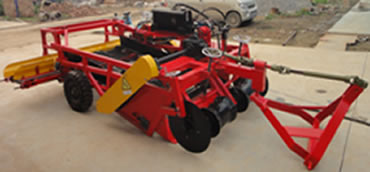

Potato Harvester 4U-2

The feature:

• Sinple structure, good performance, high efficiency and less loss. No blocking grass, earth leakage fast and long service life.
• Mainly used for harvesting potato, garlic, sweet potatoes, peanuts and Rhizome crops.
• This machine has been approved by the State Patent Office both utility model and design patents.

Technical parameters

型号Model	4U-2
行数/性能Number of rows/performance	6 ridge 1 row	6 ridge 1 row
垄距Spacing(cm)	65	80
生产率Productivity(Mu/h)	5-7	5-8
工作深度Working depth(cm)	25	25
工作宽度Working width(m)	1.3	1.6
明薯率Ming potato Rate(%)	≥96	≥96
破皮率Popi rate(%)	≤2	≤2
动力输出轴转速PTO Speed(RPM)	560	560
配套动力Matched power(hp)	55-80	55-80
整机质量Total mass(kg)	560	680
外型尺寸Dimensions(mm)	3800*2200*1400	3800*2800*1400
包装尺寸Packing size(mm)

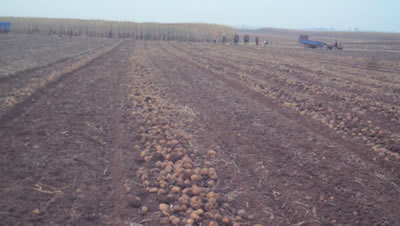

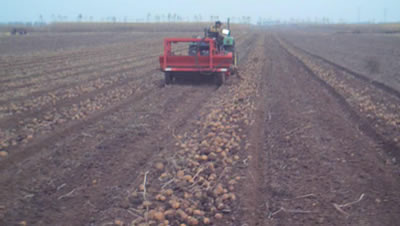

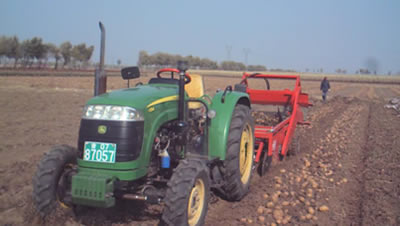

1. First finishing 2 row, the potato left on one side 2. Second and third to put it on both sides

Then all the potato is on the one row which is easy to be picked up.
